SCIENTIFIC COMMUNIQUÉ IV

May 2019

The community of photobiologists and fundamental researchers in melanocyte biology have been preoccupied with a number of key questions posed by the relationship between UV exposure and cell biology and biochemical pathways. One of the questions remaining is that of the exact role of the melanocortin-1 receptor (MC1R) within the skin (dermis and epidermis) and risk of developing skin cancer in one’s life.

Scientific experts in the field hope that, in the future, we will be able to forewarn those individuals who are at highest risk of photodamage and contracting skin malignancies through the identification of a number of molecular and genetic criteria. Ultimately, we all strive to pre-select those individuals who are most likely to be prone to photodamage and to develop neoplasms of the skin at a higher rate than the general population. We are not yet at the stage where individuals are genetically screened for risk factors for different types of skin cancers, however the discipline of photomedicine is making steady progress. In this SCIENTIFIC COMMUNIQUÉ further understanding is provided on contemporary views on the role of the MC1R, cellular signalling, and the role of UVR on DNA repair.

In SCIENTIFIC COMMUNIQUÉ I we highlighted MC1R signalling as being pivotal to the physiologic melanogenic response in man. In SCIENTIFIC COMMUNIQUÉ II some of the receptor variants found in Caucasian populations were discussed. In SCIENTIFIC COMMUNIQUÉ III the mechanism of photoprotection, repair and specific types of photodamage were reviewed.

In COMMUNIQUÉ IV we dig deeper into the qualitative and quantitative aspects of this key receptor, since most recently – among other factors – the function of the MC1R has been described as correlating with the risk of non-melanoma and melanoma skin cancers.

MC1R ALLELIC VARIANTS AND RISK

As opposed to historical belief, the polymorphism of the MC1R – encoding from chromosome 16q24.3 – indicates rather a loss of strength of the protein rather than a total loss of its function. Specialised research groups at Dana Farber, Nice University, Oxford Ludwig Cancer Institute, and the Universities of Cincinnati and Queensland have devoted their research to the further understanding of the signalling sequence and impact, with the aim of one day being able to definitively unravel the cellular mechanisms leading to skin cancers. At CLINUVEL we furthered our clinical research by focussing on the MC1R pathway and the main ligand affecting downstream signalling in a wide variety of patient groups.

The research group in Queensland, led by the excellent researchers Dr Sturm and Prof Green, have long focussed on the precise role and risk posed by the compromised function of the MC1R in red haired individuals. Over the years it has been found that MC1R variants behave as recessive mutations in red haired phenotype, i.e. fair skinned individuals. In a study evaluating 2,331 family members and 1,779 individuals the frequency of receptor variants was listed as in the table 1 below:

Table 1: Most frequent MC1R variants in Caucasians

No.
ALLELIC VARIANT
FREQUENCY (%)
1
V60L
12.2
2
R151C
11
3
V92M
9.7
4
R160W
7.0
5
R163Q
4.7
6
D294H
2.7
7
D84E
1.2
8
1155T
0.9
9
R142H
0.4
TOTAL
49.8

With the relative high frequency of some variants (more than 85 have been identified), the questions for decades have revolved around the clinical implications. In other words, how do the MC1R variants affect us and what does it mean in terms of UV exposure? And therefore, do we all have to be screened and genotyped?

In a larger meta-analysis conducted by Raimondi and Fargnoli, published in the International Journal of Cancer in 2008, it was found that seven of the nine variants listed in table 1 had been associated with red hair phenotype and melanoma development, expressed in odds ratio (OR). In other words, the MC1R status not only determines the skin colour and hair colour one generates, but most likely plays a role in the development of some (but not all) melanomas.

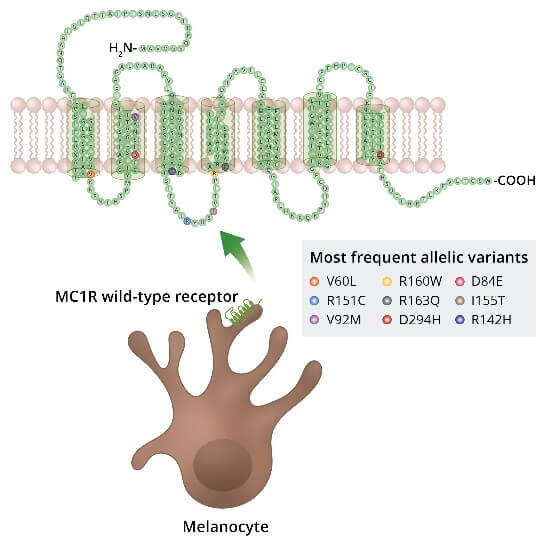

Figure 1: Variants of the MC1R
Figure 2: Melanoma is an "umbrella term" for multiple clinical disease entities

While remaining with the same scientific question, in 2018 the same Milanese group reviewed 3,830 cases of melanoma and 2,619 controls. Raimondi and many co-workers concluded from this large dataset that the presence of any MC1R variant was associated with melanoma risk with significant higher OR. By using a risk predictive model, since prospective studies in melanoma are challenging to conduct, it was found that MC1R variants played a stronger role in individuals without the red hair phenotype.

In order to analyse the association of skin complexion, phenotype and melanoma, multivariate logistical regression analyses are commonly used for predictive modelling of MC1R status and risk of melanoma. Thereby, adjustments are to be made for confounding factors such as gender, sun exposure, latitude, and/or demographic data, since all individuals live under different circumstances. Useful statistical advances have been made with so-called hierarchical modelling using first- and second-level parameters in the analyses of genetic association studies which take into account the allelic functions of study participants.

In contrast to a polymorphic receptor, the wild-type MC1R phenotype gives rise to a light coat-colour phenotype expression and ability to provide fully functional melanocyte signalling. The benefits of functional signalling have been discussed in SCIENTIFIC COMMUNIQUÉS I and II, and indirectly in III.

PIECES OF THE PUZZLE

Some pieces of the puzzle are still missing, particularly what could be considered the bridge to the MC1R end piece of the sequential processes identifying the correlation with skin cancer genesis. The combination of genetic and epigenetic factors ultimately plays a role in the emergence of skin neoplasms (non-melanoma and melanoma) in individuals at risk. Overall, adequate MC1R-cAMP-CREB-MITF signalling is directly linked to optimum melanogenesis, enhanced cytoprotection to UV damage, and augmented DNA repair response.

US research laboratories and our own team have underscored the existence of rescue systems in human cells, physiology. While questioned for previous decades, it is now widely accepted that the MC1R-cAMP-tyrosinase-CREB-MITF pathway is indeed communicating with adjacent cellular pathways under the hypotheses that “rescue loops” have been identified to compensate for defects in the MC1R pathway. Remarkably, intracellular protein communication consists of a highly sophisticated network, ensuring that a rheostat system is established whereby functions are alternated for up- and down-regulation as the cellular cytoplasm needs to adjust to its environment.

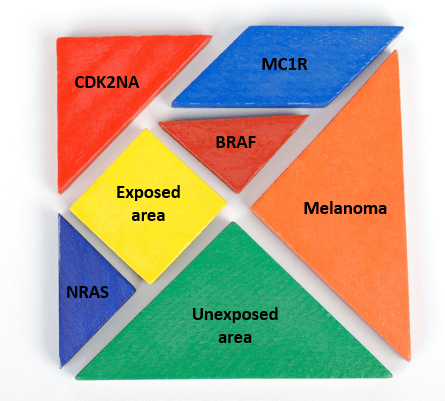

Figure 3: Some of the pieces of the MC1R puzzle

The ultimate objective is to unravel the association between the dose (quantum) of light exposure and UV irradiation, and the temporal relationship with the genesis of skin cancers (non-melanoma and melanoma). Much has been published during the last decade about the initiation and promotion of squamous cell carcinoma (SCC) and basal cell carcinoma (BCC) of the skin, whereby the cellular pathways have been mapped out quite comprehensively. Genetic and epigenetic factors are clearly determinants, and in both cancers the direct impact of the photo carcinogen is well proven.

In melanoma, the scientific status quo is slightly different, and a host of factors play a role in the genesis. In the first place, melanoma is an “umbrella term” for multiple clinical disease entities, such nodular, superficial spreading, melanoma of the acral surfaces, melanoma of the unexposed skin and exposed areas. The biological behaviour of these variants of melanoma differs markedly. Pathologists have accepted that the disease entities require differentiation and present as several variants under one denominator. Hence, the classification and subsequent therapies differ widely.

In the quest to elucidate the role of MC1R in melanoma, various studies assist in our advanced approach. As a surface endocytic receptor, MC1R is mostly considered for diagnostic purposes since most melanoma variants demonstrate an upregulated MC1R status. Recently, a number of therapeutic approaches have been made, such as endo-radiotherapy using Auger electron and α- and β-particle emitters. The results are still being evaluated and remain uncertain.

The research groups in Kentucky have made great strides towards understanding the role of the cKit tyrosine kinase and endothelin B receptors expressed on the melanocyte (see SCIENTIFIC COMMUNIQUÉ II). Whereas CLINUVEL has extensively described the protective role of eumelanin in keratinocyte derived skin cancers (SCC and BCC), the focus on melanoma has been justified by the scientific data generated from immortalised melanoma cell lines illustrating a relationship between MC1R signalling and protection to the human genome. The Kentucky group realised that the annual incidence of melanoma in more than 12,000 US citizens, sunseekers and tanning bed users (more than 25% of US citizens use indoor tanning, amounting to 30 million customers) would warrant further research in MC1R and melanoma.

The first relationship between UV-sun exposure and melanoma is derived as characteristic signature mutations, found in sun exposed variants of melanoma. SCIENTIFIC COMMUNIQUÉ II described the typical photolesions found following UV exposure, consisting of 6-4 photoproducts and cyclo-pyrimidine dimers formed in the double helix of the DNA. One distinguishes “light photolesions” formed upon UV exposure and “dark photolesions” seen hours after UV exposure has ceased. As stated in the past, the irradiation of UV follows a stochastic model illustrating that a threshold of UV is tolerated, above which keratinocytes start to die off (the process of apoptosis).

Second, it is found that Caucasian individuals with partial-loss-of-function of the MC1R are more likely to bind antagonistic molecules to the MC1R, such as agouti signalling protein (ASIP) and beta-defensin 3 (βD3). The biochemical consequence is an inferior melanocytic output and lower eumelanin to pheomelanin ratio. This in turn leads to:

  1. propensity to sunburn;
  2. increased photodamage;
  3. less photoprotective melanogenesis; and
  4. lessened ability to repair DNA photodamage.

The obvious solution has been to attempt to optimise MC1R signalling through pharmaco-chemical stimulation of the receptor, one of the reasons CLINUVEL’s continuous focus on the activity of melanocortins.

Recent studies have focused on inter-pathway communication, unveiling that MC1R signalling induces the transcription of the nuclear factor NR4A in response to UV radiation. When the nucleus of the cell is stressed, intracellular NR4A receptors are upregulated as a nuclear protective mechanism. The possible clinical relevance of this finding is the existence of further pathways initiating protection against UV exposure, beyond the previously presumed limited ones.

Various US research groups have postulated in the past as to how melanocortins could exert their effects on melanoma. These scientific hypotheses stem from a number of studies, such as those experiments described by Froidevaux and Eberle in 2002 (the year V600E BRAF mutations were published in Nature). In transplanting two human cell lines – D10 and B16F1 – in mice, they observed down-regulation of the MC1R following the administration of alpha-melanocyte stimulating hormone (α-MSH). While CLINUVEL’s earlier work had shown similar results, in the studies conducted by Eberle et al a single injection of 50 to 500 micrograms of alpha-MSH induced a rapid but moderate dose-dependent MC1R down-regulation which could be totally reverted within 16-24 hours. By continuous administration of alpha-MSH via osmotic minipumps, the Swiss researchers showed that MC1R down-regulation was considerably enhanced, thereby confirming the thought that prolonged receptor interaction is necessary to induce a maximum effect.

The importance of the animal studies is often debated in literature (and certainly among clinicians), since a rodent’s biology behaves differently to a man’s. Nevertheless, as time goes by more work is being published and results point to the protective effect of an optimum alpha-MSH-MC1R-cAMP-PKA-MITF axis.

The role of the MC1R is much more complex than a linear up- and down-regulation. The functionality of the receptor very much depends on the physiologic and pathologic environment of the host cells. In SCIENTIFIC COMMUNIQUÉ II we discussed how the MC1R receptor inhibits activation of p38 MAP kinase, and thereby subsequently enhances syndecan-2 expression, which is of importance for stability and migration of melanoma cells.

SUNBURNS AND RISK OF CUTANEOUS MELANOMA

In a 2008 meta-analysis Dennis and Coughlin had elucidated the odds ratio for melanoma development having retrieved data from 270 articles and pooling 51 studies. The authors analysed that, for those study subjects who incurred a sunburn in their lives, an increased risk of melanoma was found with increasing number of sunburns for all time-periods (childhood, adolescence, adulthood and lifetime). In linear modelling, the magnitude of risk for five sunburns per decade was highest for adult and lifetime sunburns.

In 2014, Quereshi published findings in the Journal of the American Association for Cancer Research from a study of 108,916 Caucasian women (registered nurses). This showed that those who had at least five blistering sunburns at the age of 15 to 20 years old had a 68 percent increased risk for BCC and SCC of the skin, and an 80 percent increased risk for melanoma. Of all women participating in the study, 6,955 were diagnosed with BCC, 880 were diagnosed with dermal SCC, and 779 were diagnosed with melanoma. He found that there was a strong relationship between cumulative UV exposure and risk for BCC and SCC of the skin, while no association was found for melanoma. Importantly, in those who had had at least five severe sunburns between ages 15 and 20 an increased probability for developing any of the three types of skin cancers was found, but the greatest risk was assigned to developing melanoma.

In 2016, Wu and Quershi analysed data from 87,166 women and 32,959 men to evaluate overall skin cancer risk associated with history of severe sunburns at different body sites (face/arms, trunk, and lower limbs). In adjusting for other risk factors, overall baseline history of severe sunburn was more apparently associated with risk of melanoma than with risk of SCC and BCC in men: the multivariable-adjusted hazard ratios were 2.41 for melanoma, 1.48 for SCC, and 1.18 for BCC.

Figure 4: Concentric expansion of CLINUVEL’s attention

Many other studies have focussed on the association between lifetime sunburn frequency and the three most prevalent skin cancers, BCC, SCC and melanoma. Although melanoma requires further differentiation, the increased risk of incurring melanoma following one or several severe (blistering) sunburns becomes more and more part of mainstream advice by dermatologists and general practitioners. Not surprisingly, the work of CLINUVEL to provide systemic photoprotection is concentrated towards those individuals at highest risk (constitutional, familial) of contracting melanoma in their lifetime. The prevention of the disease in individuals at risk is an area of intense focus and critique by CLINUVEL’s teams, with the objective one day to have the ultimate preventative agent developed. The use of sunscreens and prudent sun behaviour should be practice for all Caucasian children and adults, however for those at increased risk perhaps more can be done and further products be developed. This domain is at the core of CLINUVEL’s interest.

APPENDIX: SCIENTIFIC COMMUNIQUÉ GLOSSARY

ACTH – adrenocorticotropin

α-MSH – α-melanocyte-stimulating hormone

Apoptosis – programmed cell death in order to regulate balance within the skin

AGRP – agouti-related protein

ARRB1 – arrestin-beta-1

ARRB2 – arrestin-beta-2

ASIP – agouti signal protein

Bak – Bcl2- homogenous antagonist killer, pro-apoptotic regulator

Bax – Bcl-2 Associated X

Bcl-2 – B-cell lymphoma 2, regulator protein involved in apoptosis

BD3 – β-defensin 3

Bid – BH3-interacting domain, a pro-apoptotic protein

BRAF – v-Raf murine sarcoma viral oncogene homolog B1

BRN2 – a transcription factor, belonging to homeodomain POU3F2, N-Oct-3

Caspase – cysteine-aspartic proteases, protease enzymes involved in apoptosis

CDKN2A – cyclin-dependent kinase inhibitor 2A

CPD – cyclobutane pyrimidine dimer, occurring as fast as 5-90 minutes following first UV and sun exposure

Chromophores – a chemical group of atoms and electrons absorbing light of specific wavelength(s) and providing colour to a molecule

CRE – cAMP-responsive element

Dermis – mid layer of the skin, between the epidermis and hypodermis

Dewar – valence isomers, interrelated isomers (a heterocyclic aromatic organic compound, consisting of a pyrimidine ring fused to an imidazole ring (through pericyclic reactions)

Dimer – a molecular structure or complex comprising of two identical molecules linked together, in this context the pyrimidine dimers from thymine or cytosine

DNA – deoxyribonucleic acid, containing the genetic code

DPD – delayed pigmentary darkening, occurring after days of UV exposure

Endothelin-1 – cell receptor on the melanocyte

EPP – erythropoietic protoporphyria: a rare metabolic genetic disorder in man which causes accumulation and storage of phototoxic protoporphyrin IX in the skin and liver and bile ducts

ERK – extra-cellular signal-regulated kinases

Fas – apoptosis stimulating fragment, Apo-1 or CD95

FasL – fas ligand

FasR – apoptosis stimulating fragment receptor

FEP – free-energy perturbation

FGF – fibroblast growth factor

Fitzpatrick skin type – first described by Fitzpatrick in 1975, classifies skin in six distinct types based on melanin density and tanning propensity

FOXD3 – forkhead transcription factor D3

GG-NER – global genomic NER

GPCR – G-protein coupled receptors

GR – global repair, mechanism to repair UV damaged DNA

GRK – GPCR kinase

I-κB – nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor

IPD – immediate pigmentary darkening

Keratinocyte – keratin producing cells of the epidermis

MAPK – mitogen activated protein kinase

MC1R – melanocortin-1 receptor, a 317 amino acid protein and a seven-pass transmembrane G protein coupled receptor Melanin

MED – minimal erythemal dose

MD – melanin density

Melanocompetent – individuals who can respond to UV exposure with a protective eumelanin response

Melanocompromised – individuals unable to generate sufficient eumelanin and burn as a result of UV exposure. These individuals are at a much higher risk of photodamage and skin cancers.

Melanocortin – peptide belonging to the group of proopiomelanocortin, such as ACTH, α-MSH, β-MSH, γ-MSH

Melanocyte – pigment producing cell

Melanogenesis – the process by which melanin is generated within the melanocyte and transferred to the keratinocyte

Melanoma – a malignancy originating from the melanocyte and now known to be linked to a variety of biochemical and genetic defects. Melanoma is an umbrella term for a variety of tumours with diverse biological behaviour.

MGRN1 – mahogunin RING finger-1 (ubiquitin E3 ligase with RING-domain)

MITF – microphthalmia-associated transcription factor: protein responsible for – among other activities – melanocyte development, differentiation, and survival

NEDD9 – neural precursor cell expressed developmentally down-regulated 9

NER – nucleotide excision repair, mechanism to repair DNA damage

NF-ĸB – nuclear factor kappa; light chain-enhancer of activated B cells

NIS – Na-I symporter

NR4A – orphan nuclear factors, transcriptional regulators of gene expression in metabolic and vascular anomalies

p38 – delta protein kinase which, under normal conditions this protein kinase controls cell differentiation, but under stress it regulates a cellular distress response

p53 – ubiquitous human tumour suppressor protein controlling the cellular response to DNA damage, cycle progression and apoptosis by regulating its targets transcriptionally. p53 plays a critical role in the normal UV stress response and activation of pigmentation by transcriptional activation of the POMC gene.

PAT – palmitoyltransferase

PAX3 – paired box gene 3

PGE2 – prostaglandin E2: a lipid signalling intermediate

Photodermatology – a sub-specialty of photobiology including all aspects of photobiology related to the skin ranging from sun exposure and its consequences (both short term and long term) to the therapeutic effects derived from exposure to natural or artificial radiation

Photomedicine – deserves a broad definition spanning all aspects of photobiology, photophysics and photochemistry, investigating the interaction of light and human matter and tissues

Photolyase – DNA repair enzyme, belonging to the enzymatic class of flavoproteins

Photophysics – concerned with processes that occur when light and sunlight, filtered through the Earth’s atmosphere, interact with matter (atoms and molecules) present, with particular attention to the spectrum of solar radiation striking the organic matter

6-4 Photoproduct – molecular lesion within DNA following a photochemical reaction

Photothermolysis – thermal damage following a photochemical reaction

PKA – protein kinase A

POMC – proopiomelanocortin

Purine – a heterocyclic aromatic organic compound, consisting of a pyrimidine ring fused to an imidazole ring, such as the case in adenine, guanine

Pyrimidine – a heterocyclic aromatic organic compound similar to benzene and pyridine, containing two nitrogen atoms at positions 1 and 3 of the six-member ring

RHC – Red Hair Colour (phenotype)

RING – real interesting new gene

RNA — ribonucleic acid

Sdc2 – syndecane-2

SLUG – SNAI2 transcription factor

SNAII – SNAI1 transcription factor

SOX9/10 – HMG-box of the sex-determining gene SRY on the Y-chromosome

Squamous Cell Carcinoma – epidermal tumours (skin cancers) caused by chronic sun damage

TCF – transcription factor

TC-NER – transcription-coupled NER

TI – thermodynamic integration

TpT3 – Dewar valence isomers

TRAIL – Tumour Necrosis Factor-related apoptosis-induced ligand

USF-1 – transcription factor

UV/UVR – ultraviolet radiation, electromagnetic radiation from 10-400nm wavelength, further divided into UVA (320-400nm), UVB (280-320nm) and UVC (100-280nm).

V600E BRAF – mutations found in melanoma whereby the amino acid substitution occurs at position 600 in BRAF, from a valine (V) to a glutamic acid (E).
